Anderson Style Connectors

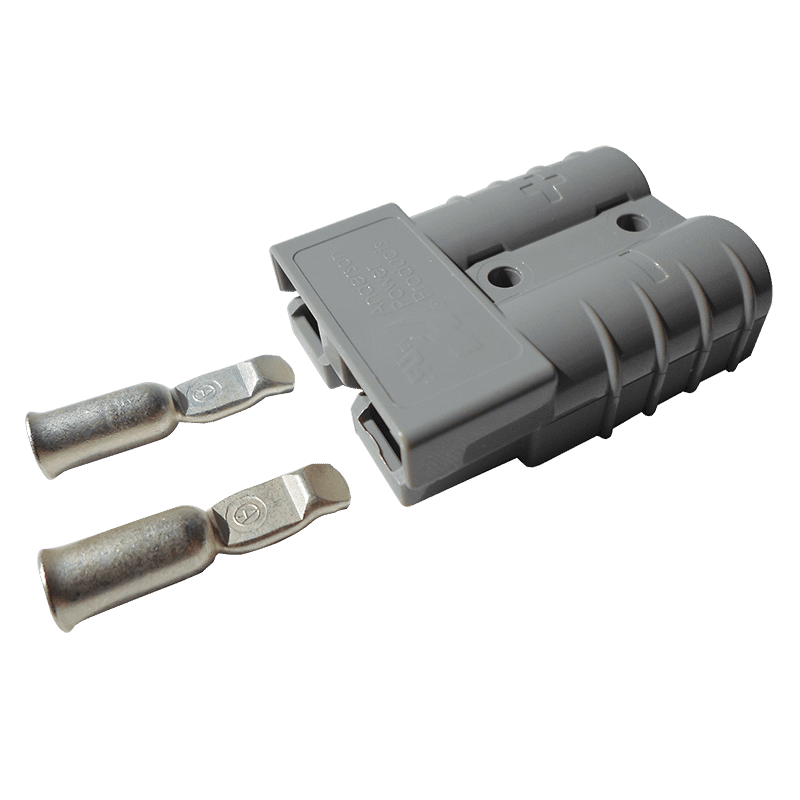

50AMP Anderson Plug Connector housings with contacts
From Anderson Power Products, this range of connector are ideal for the 4WD and Camping and Caravanning enthusiast.
and the single piece housing is robust and practical. A robust product, these connector housings and contacts are capable of 10000 connect / disconnect cycles,
and the silver plated contacts offer longevity when using high power. The range also features flat wiping contacts and have a UL voltage rating of 600V.
These are great for diy jobs where they provide a safe and piece of mind connector.
DIY instruction.
1/ If it is a twin core cable strip back and seperate the two cores inside.
2/ Carefully strip back approx 1cm of each core, (positive and negative).
3/ Connect the Anderson connector lugs to the stripped cable ends. Using a crimping tool, crimp terminal lugs onto the cable.
4/ Ensure the terminal lugs are crimped correctly, Pull on eack lug to make sure they dont come apart from the cable.
5/ Making sure the lug lip on the terminal is facing up, attach the Anderson plug to the positive and negative cables,
6/ Make sure to inserted the lugs in their designated side (pos + and neg -).
7/ Push the cables all the way through until the terminal lug lip latches over the spring clip.
8/ Ensure both cables are fixed in place by carefully pulling each one individually,
Length: 5cm
Width: 3.5cm
Height: 1.5cm
