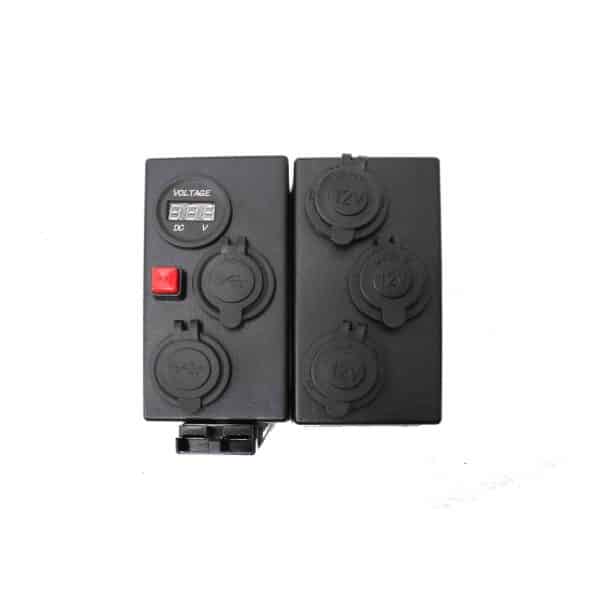

Dual Multi Outlet Control Box / 12V DC Power Distribution with 1 x 50 Amp Anderson connector, 2 x Cigarette, 1 x Merit, 2 x USB Outlets
All of our Dual Multi Outlet Control Box / 12V DC Power Distribution are Made In house and are internally soldered and wired with 6mm Twin sheathed oxygen free cable. This means that the cable use in these quality control boxes will truly last the test of time and will not tarnish (go green) after many years of use in harsh environments. The use of oxygen free cable means that voltage drop will be greatly reduced when using these control boxes.
Can’t Find It. Did you know you we build these ourselves and can custom make any sockets combination you want.
Specifications per outlet box:
Control box and LCD Volt Meter
1 x Auto reset 15 Amp circuit breaker – wired to protect the sockets
1 x 250mm length 6mm Twin core cable with yellow joiners
2 x Marine Grade Cigarette type socket – rated to 16 Amps
1 x Merit Socket
1 x 50 Amp Anderson connect
2 x USB
1 x Volt Metre
Length: 54 mm
Depth: 35 mm
Height: 160 mm
