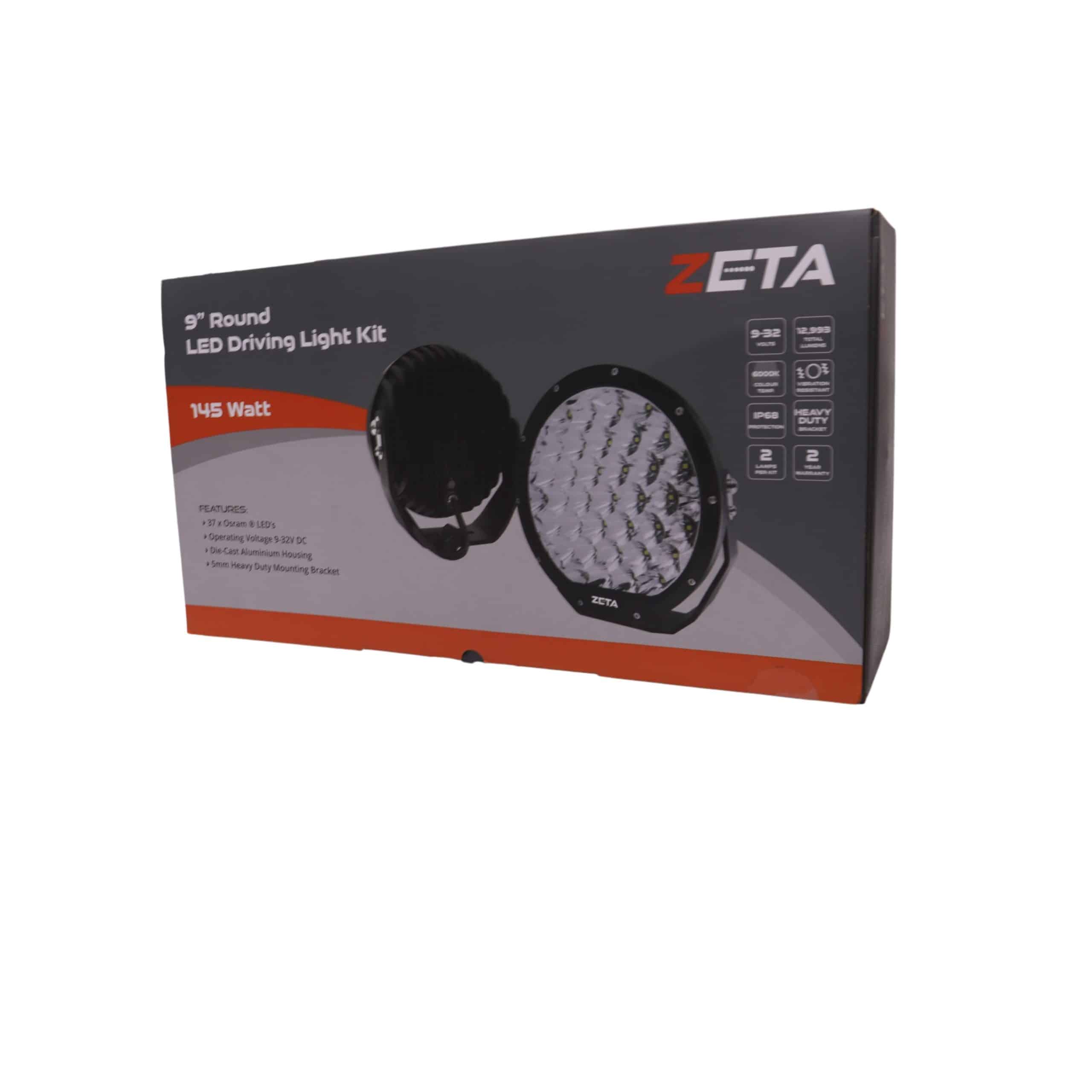

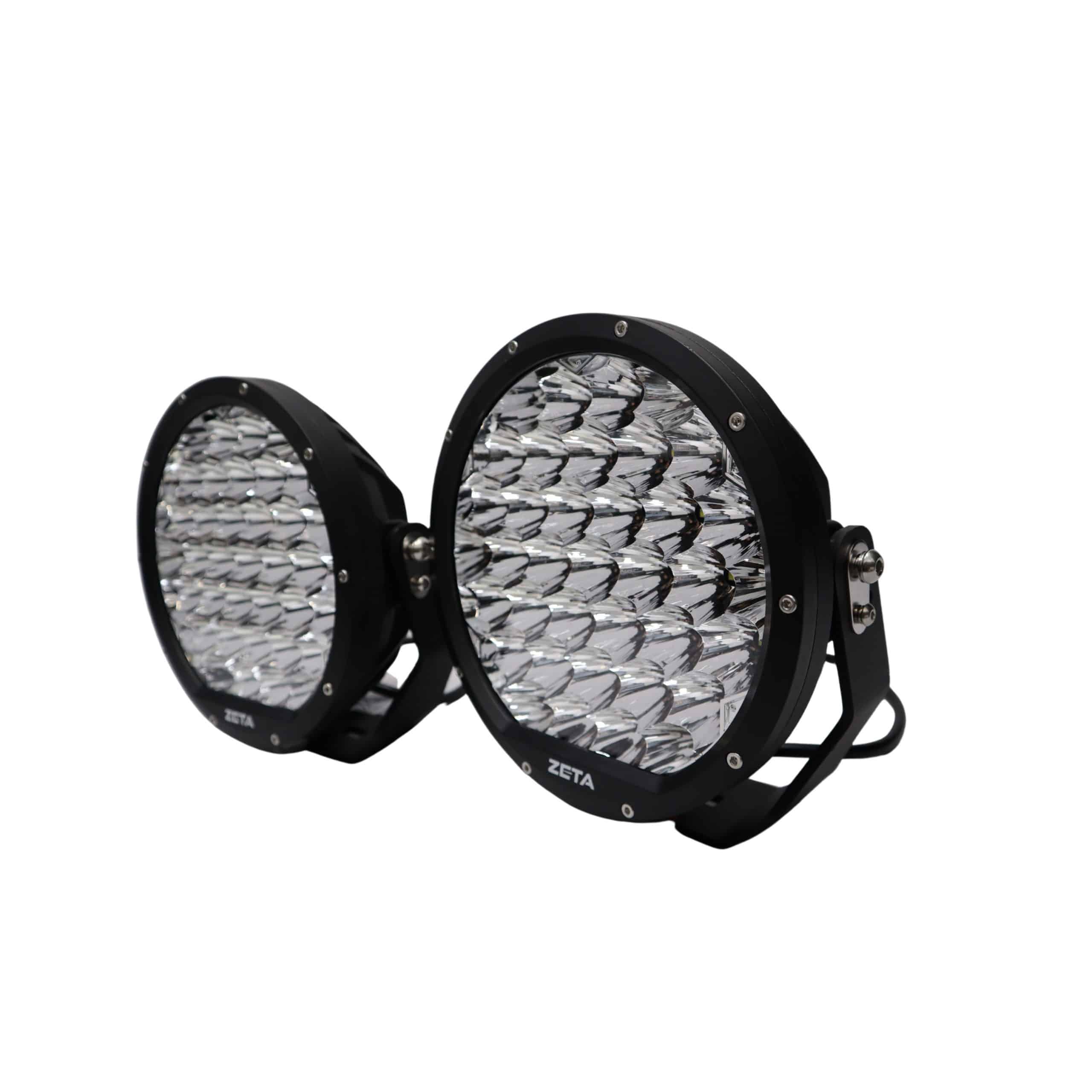

ZETA 9″ LED DRIVING LIGHT KIT

FEATURES / SPECIFICATION

37 x Osram ® LED’s
Wattage: 145W
Operating Voltage 9-32V DC
Current Draw: 11.6A (12V) / 5.8A (24V)
Colour Temperature: 6000K
Raw Lumens: 16,000 each
Effective Lumens: 12,993 each
IP Rating: IP68
EMC Compliant

1 Lux: 846 Metres (Pair of lamps)
Polycarbonate Lens
Die-Cast Aluminium Housing

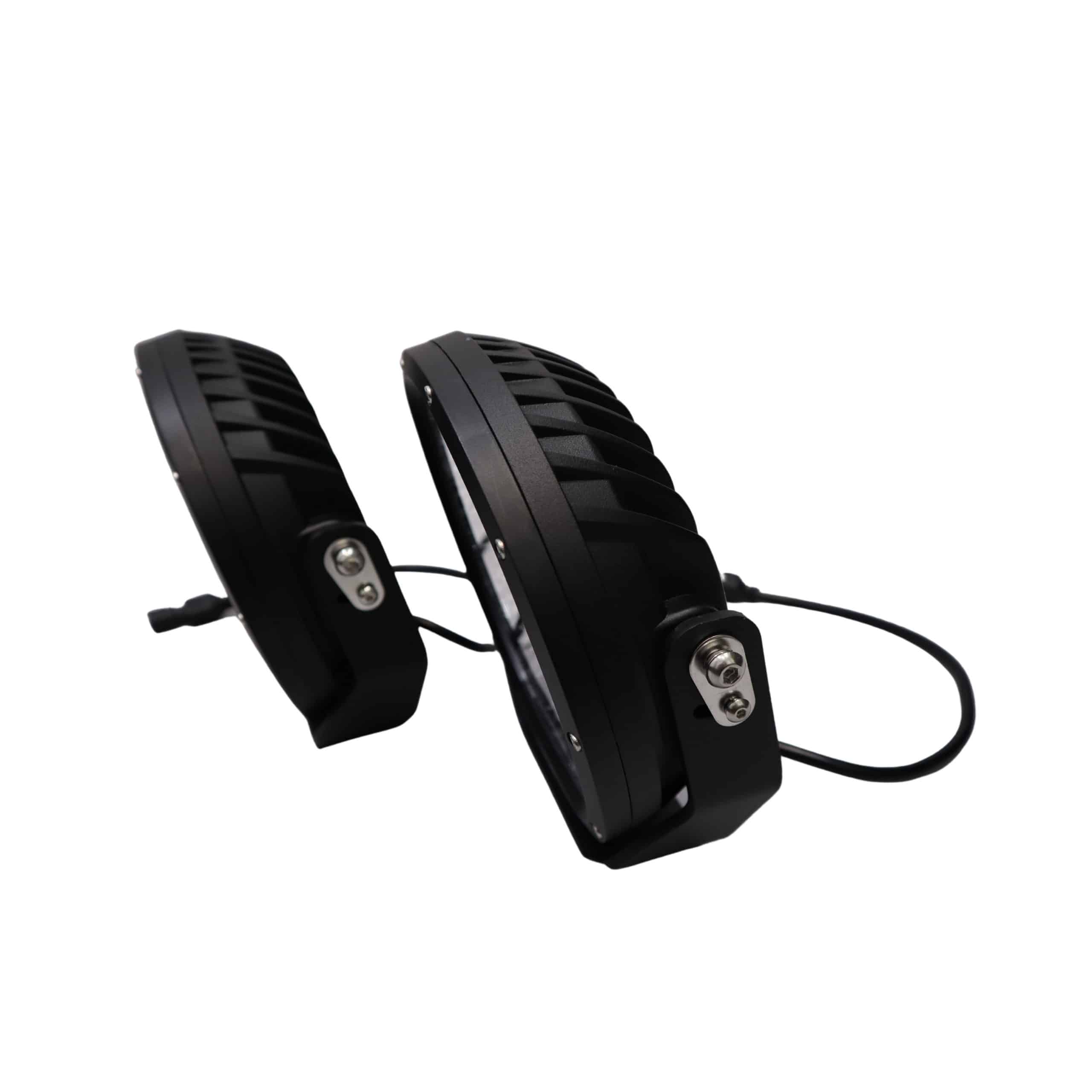

5mm Heavy Duty Mounting Bracket
Sealed Deutsch Connector
Beam Type: Combination Beam
2 Lamps supplied per kit
Measurements: 228 x 241 x 70.5mm (inc. bracket)
Optional Wiring loom available (p/no. ZETA01)
